Functions:
– a short press (less than 2 s) turns the lights on for 15 minutes
– a long press (more than 2 s) turns on the lights for 30 minutes
– press and hold once to turn off the lights
– the button has a backlight that lights up when the power is turned on

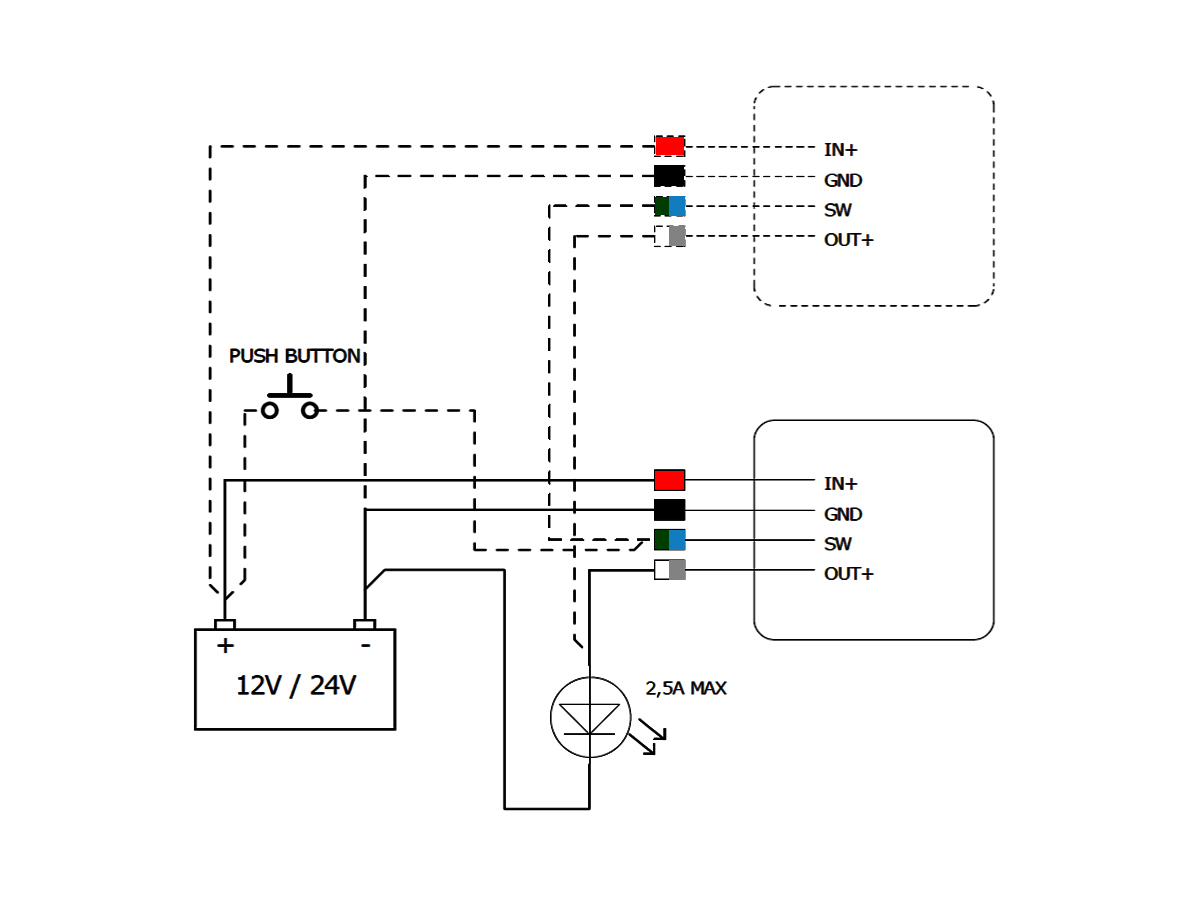

Can be controlled from the cabin with a push button that allows the same functions to be accessed from the cabin.
10 TMT indoor lights (50606 or 50607) can be connected to the button
Supply voltage: 9 - 32 VDC
Power consumption 10 mA
Load: max 2.5 A
30W - 12V
60W - 24V
Operating temperature: -25 °C - +40 °C
Cable length: 3 m
W88102
W1113
50607
37217-FT
